Advanced Ceramic Manufacturing

Engaged in professional precision ceramics production and processing
we offer comprehensive manufacturing support services, including material preparation, high-temperature sintering, and precision cleaning.

Production Capacity

Based on a variety of advanced ceramic materials that have been widely used, we provide you with internationally competitive solutions through complete production service capabilities from material preparation, high temperature sintering, precision processing to precision cleaning, strict quality and cost control, timely service response and rapid delivery to help you quickly respond to new market needs and development trends. With the continuous extension of the application field of advanced ceramics, more challenging products and application requirements can be put forward, so we can also explore and develop advanced ceramic products with high precision, high difficulty or specific functions according to customer requirements. At present, the ceramic materials that can be used by the company mainly include but are not limited to the following: high-purity alumina (up to 99.7%), zirconia, yttria, silicon carbide, silicon nitride, aluminum nitride, mullite, etc. The dimensional accuracy up to ±0.002, the flatness up to ±0.002 mm, the long strip products can be up to 2000 mm, and the diameter of the circular products can be up to 1000 mm.

Advanced Ceramic Manufacturing and Applications

Advanced Ceramic Fully Independent Manufacturing

Precision Machining Capability for Other Materials

Maximum specification: 850mm diameter and 2000mm length

Dimensional accuracy: ±0.002 mm. Parallelism: ±0.002mm



Companion's diverse advanced ceramic materials meet various production needs.
  • ▶ Alumina(99.7%)

  • ▶ Silicon Carbide

  • ▶ Aluminum Nitride

  • ▶ Yttria

  • ▶ Quartz, Graphite, Silicon, etc.

  • ▶ Iridium Stabilized Zirconia(YSZ)

  • ▶ Barium Titanate

  • ▶ Titanium, Aluminum and Other Metals

  • ▶ Aluminum Silicate

Technology and Process

Isostatic pressing and dry pressing are the most commonly used methods for shaping ceramic blanks. Isostatic pressing involves compressing ceramic powders from all sides in specific molds to achieve the best product density and uniformity. This technique is generally used in the shaping process for large-scale products. Our equipment can meet the shaping requirements for products with a length exceeding 2000mm or a diameter of up to 850mm.

01

Material Preparation

02

Material Forming

03

Sintering

04

Fine Machining

05

Inspection

06

Precision Cleaning

07

Vacuum Packing

Material Preparation

Select appropriate raw materials according to product requirements and strictly control the quality.

Material Forming

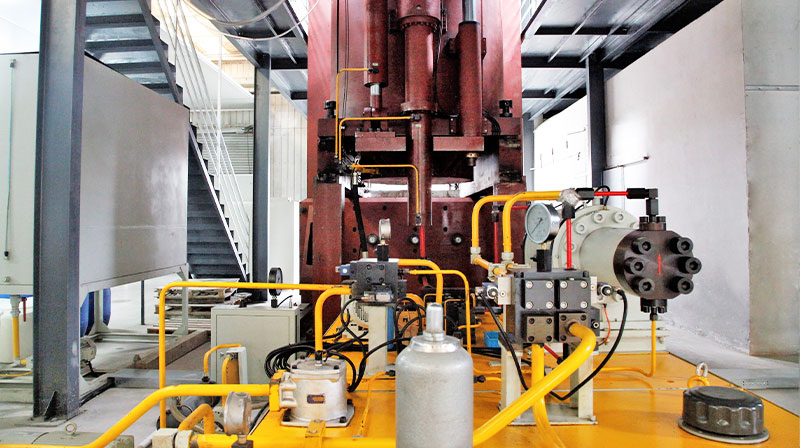

Isostatic pressing and dry pressing are common methods for forming ceramic blanks. Isostatic pressing involves loading ceramic powders into molds and applying pressure from all sides to achieve optimal density and uniformity. This technique is used for large products, and Companion‘s equipment can handle products over 2000mm in length or 800mm in diameter.

Sintering

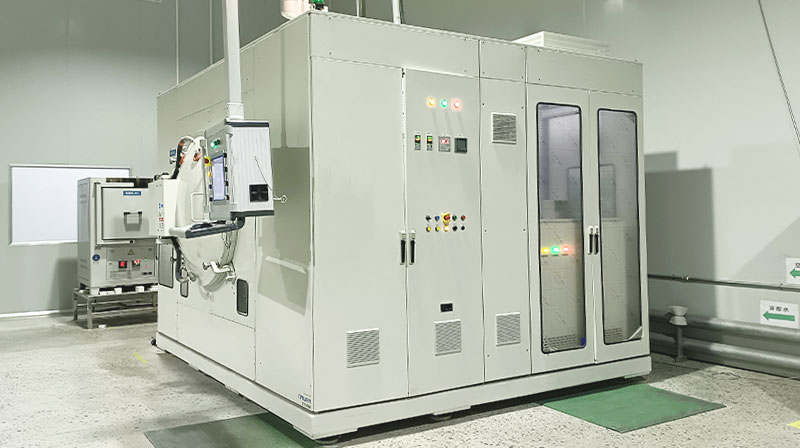

Companion has a range of high-temperature sintering furnaces to sinter blanks of various sizes and shapes according to precise temperature profiles, ensuring the desired product density and shape.

Fine Machining

In order to ensure that the product size can meet the stringent requirements of the application field, the sintered products will be grinded and polished by various precision processing equipment to meet the dimensional accuracy requirements. Companion has the experience to control the product dimensional tolerance accuracy within ±0.002mm and flatness within ±0.002mm.

Inspection

Comprehensive inspection of product surface microstructure, dimensional accuracy, cracks and other indicators to ensure the overall performance of the products.

Precise Cleaning

Strict surface treatment and cleaning process will be used in electronic communications, display&lighting, precision optics and other sophisticated products in the field.

Vacuum Packing

After reaching the standard of cleanness, the products will be vacuum-packed in Class 100 dust-free workshop.
